Invent Your Own
Metal Amp Sound
from Pedals
In the last issue we looked at
the best bang-for-the-buck
guitar picks for the metal guitarist
(click here for a refresher). This time we’re
going to invent our own metal guitar amplifier
sound. And we’re going to do it by stealing
a few ideas and applying these same
principles to gear you may already own.
We’re also going to hear and see the latest
solo piano tune by Dangerous Neighbors
called Games of Respect. If you found it on
“Farcebook” this version is higher video
quality. So sit back and relax. Welcome to
Zystrix, the heartbeat of the universe. Where
creativity and free-thinking have more
value than conformity.
Background
Artwork
The colorful artwork that
surrounds the edges of this
website is invisible to many
cell phone users. It’s
included here for your
enjoyment. Multiple copies are tiled together for a
cohesive and seamless background seen all
around this page. Enjoy.
Introduction -- What makes a
great metal guitar sound?
Most guitarists agree there
are many great guitar
sounds not only in metal
but also in all kinds of
music. What we’re going
to do this time is make
the guitar sound massive
for metal. This is not a
quick “do it and done”
approach – it requires
listening at all stages and
slowly closing in on the
sound. When you get a
chance listen to the guitar
sounds on “Zoo-Tube” for Whitesnake (1987
album), Metallica (black album), and Black
Sabbath (album 13). Although there are others,
these are three great examples of huge metal
guitar sounds.
We’re are using those sounds as our target to
achieve a very similar sound, or use them as a
springboard for your own individual rendition or
creation. I prefer the springboard approach, but
you may prefer to copy. And we’re going to do it
using only a small portable pedal setup. And we
are not concerned (at least for now) with post
production (limiting, compression, reverb, second
cab, etc) because that’s another topic for another
day. And as usual on this website we’re going to
build it on a budget. That’s the theory behind our
sound. Is it impossible? You be the judge, but it’s
possible to come very close. Let’s move on and
examine how they get those sounds by breaking it
down to the basic elements and then
using those basic ideas to invent our
own.
A guitar amplifier has three parts: the
pre-amp section (this boosts the guitar
signal), the rectifier section (this prepares the pre-
amp signal for the power amp), and the power
amp (this makes the signal voltage high enough to
drive a speaker). Each section has it’s own tube
sound. Depending on the amp design and tube
types these three parts work together to give a
distinctive amplifier sound. The transformer also
has a part in the amplifier sound as does the bias
setting, but the overall amp head tone is what
we’re concerned with. The speaker type, and
cabinet size and type also have significant
influence on the overall guitar sound, as does the
microphone type used on the speaker, but for now
and for simplicity we’re concentrating on just the
amp head.
Let’s Get Started --
Inventing Our
Amplifer Sound
OK, so what cranked amplifier
sound do you prefer? I prefer the amp head
pedal to be analog (like the Wampler Triple
Wreck, Friedman Dirty Shirly, Friedman BE-OD,
Joyo High Gain Distortion, Caline English Man,
Tone City Golden Plexi II, Fulltone OCD (Mosky
Obsessive), Revv G3 or G4, and many others) but
I’m sure any decent sounding pedal would
probably work OK. Would a modeler pedal work?
Yes, but after a lot of experimentation I feel an
analog pedal does a better job because it has
pimples, and unlike a model pedal, that tends to
add realism. But of course, it’s all about your ears
and what you prefer (or maybe what pedals you
own to save money). There are many great
options and opinions for amp sounds, but we have
to choose something to start somewhere, so for
now let’s choose something that really rocks (TW
by Mosky, the Wampler Triple Wreck, Amptweaker
Tight Metal, the Revv G4, many others). You be
the judge. The
overdrive pedal type is
not written in stone as
long as we follow the
basic pedal order
construct, but we have
to start somewhere.
Use your ear and use what you like. But whatever
you choose, that will be your main amplifier sound
(see pedal letter C).
Still Building the Sound
In this second simple example below
we’ve taken the chosen overdrive
(distortion) pedal (used as an amp
head emulation -- pedal C) and
plugged it into an IR pedal (pedal E).
This gives a basic sound of an amp
and speaker combination. There are many IR
pedals available, but I prefer one with a longer
recorded IR (at least 200ms for more realism but
500ms is better) with a power amp and
microphone emulation built in. Unfortunately this
is a tall order because I have never found one that
did it all, but there’s a work-around (or in this case
a compromise) for everything. For an excellent
listing of bang-for-the-buck IR pedals and their
options and probably the best cool free IR cabinet
downloads available anywhere simply click here.
Anyway, in this case I’m compromising by using a
Joyo Cab Box because, although the IRs are only
about 100ms
(close microphone
sounds), the power
amp sound and
the microphone
emulations are
built in (and they
sound quite good) which makes it easy. And last I
knew (before tarrifs) the price is reasonable. If I
added a Boss IR-200 (or maybe a TC Electronic
Impulse IR Loader, or maybe a Mooer Cab X2)
for the cab tones after the Joyo Cab Box it
would be perfect.
Getting Even Better

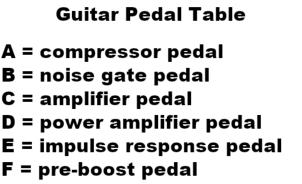

The guitar pedal table below explains the
various pedal functions. And the pedals are
interchangeable as long
as the type is the same.
So all type A pedals are
compressors, all type B
pedals are noise
gates, and so on.
When it comes
to pedals D and E some pedals have both
(including microphone emulations like the
Joyo Cab Box) whereas some only offer
one or maybe two emulations. If money is
no object then the best power amp
emulation pedal (probably the Joyo Cab
Box to my ear) would come before the best
impulse response pedal (probably the Boss IR-
200) because of the 500ms IR option. As far as a
letter F pre-boost pedal many guitarists prefer a
type like the Tube Screamer, the Klon, DOD 250
(Mosky D250), MXR Timmy (or Caline Pure Sky),
MXR Distortion + (Biyang DS-10), and
many others. I can’t say I like them
because I prefer the big amp sag sound
so I usually go with my old MXR Dyna
Comp (try the Caline Gale Force) or a Ross
Compressor (Lekato R-Comp). But that’s just me
-- I like the sound of an amp that seems like it
can’t quite keep up. Like I said earlier, use your
ear and choose the sound you are seeking. So,
depending on your tastes our pedal board either
looks like this...
or like this...
Starting to Sound Massive
Now we need another power amp emulation to
come between the IR pedal (letter E) and the amp
head pedal (letter C).
This adds more warmth
and some grunt. I
usually don’t want the
power amp to add too
much dirt, just even
order harmonics. This
sound is a balancing act and it depends of your
tastes and also the output of pedal C and the
sensitivity of the pre-amp pedal. There are
dedicated power amp pedals (read expensive),
there’s the free Ignite Amps
TPA-1 -- great sound but it
requires a DAW, and there are pedals that have
the power amp sound but are considered regular
guitar pedals. Some pedals
to consider are the original
Sans Amp and it’s cleaner
sounding Marshall amp
emulations. Or try a slightly
turned up clean setting (EQ
set by ear relatively flat) on
something like the Tone City Golden Plexi 2,
Caline English Man, Mooer micro pre-amp series
001 (Diezel), 002 (Marshall 900), 003 (Koch
-- my favorite), 005 (5150), 008 (Boogie),
and many others. Don’t forget to turn off
the cab simulation if it’s offered on the
pedal. Also, pedal F can be substituted for
pedal A below. Now we’ve got a pedal
setup that looks something like this…
Who Done It?
The Final Piece
of the Puzzle
OK, you’ve gotten this far
in the setup. You really enjoy your new amp
sound, and it rocks like hell. However, you also
notice an annoying hiss from so much gain
staging. That’s where the noise gate (pedal
B) comes into play. I use two so I can really
clamp down on the noise but still sound
huge. And where they go and what type
to use is somewhat of a matter of taste.
My favorite one is the Rowin Noise
Gate -- it does a great job at a great
price. Anyway, below you’ll see my
placement choice and so far it has worked for me.
Once again, pedal F can be substituted with pedal
A. So depending on the
noise gate types you use
your pedal board may look
something like this...
Invent Your Own
Metal Amp Sound --
Conclusion
As you can see, putting this pedal
assortment together takes time,
experimentation, and lots of listening
to find the correct levels and tone, but
it’s
worth it. And there are an immense
amount of sound options. The order is basically
pre-pedal (or compressor), amp head, power
amp, power amp again, IR pedal with microphone
(and possibly room) emulation. If you’d like a
portable setup add a guitar tuner pedal
at the beginning (try the mini TC
Electronic Polytune 3). Then the final
signal goes directly into your recorder or
your amp’s aux in. It’s a balancing act to
get the cascading correct so the end result
sounds pleasing, natural, and above all,
massive. Whether you are trying to emulate some
of the example sounds or if you want the ultimate
portable personal metal amp sound, I hope this
presentation has helped you discover some of the
many possibilities, and
also given you a reason to
begin experimenting.
“Games of Respect”
solo piano by
Dangerous Neighbors
When communicating with a friend or a lover the
games of respect come naturally
because the feeling is mutual. But
as the communication dynamics
change, like with politicians or world
leaders, the games of respect can
become strained or even deadly. Click here for
the MP3 version of Games of Respect. Click
here for the video version. Enjoy.
Don’t touch that dial…
Stay tuned next time…
Next time we’re going to… vacation.
Yup, it’s been more than a year and I’m
ready. What will we cover then? My Magic 8 Ball
says, “Better not tell you now”. So long, I’ll be
back August 4, 2025.
No one turned up to the first meeting
of my Sarcasm Club – despite loads of
people saying how much they were
looking forward to it…
Zystrix = a source, shaman, or library disseminating secret or lost knowledge, art, or music.
ZYSTRIX
POPULAR FREE DOWNLOADS
The Best Free
Synthesizers of 2024
It’s another epic issue, and there’s lots of
FREE downloads here. And the Honorable Mention Synthesizer
List might surprise you. This list is long, so prepare yourself. And
if it seems like too much to take in, I warned you. Click here for
the official list of The Best Free Synthesizers of 2024.
The Best Free
Mastering Plugins
Your DAW (digital audio workstation) will be
so happy. And so will you. Here are the best of the best for
EQ, compression, limiting, tube and tape emulation, reverb,
delay, and honorable mentions. This list is a must have with
lots of downloads. Check out The Best FREE Plugins for
Mastering 2024.
Here’s a free download of almost one and a half hours of original
neo-classical solo piano by Dangerous Neighbors. This full
length album called Piano Top to Bottom consists of 18 original
piano pieces with the final piece in two movements. There is a
bonus track making 20 files total. This download comes in three
format options: the first option is a single file MP3 containing all
the tunes in one chunk similar to tape recordings. The
second download option is a folder with all of the separate
MP3 piano pieces named and arranged in album order
similar to a CD or MP3 player. The third download option is similar
to videos found on “ZooTube” with the names and times on the
screen. There is also a fourth surprise version made only for
“ZooTube” and it is edited down to less than 15 minutes long
because of their telephone number required rule. Basically it just
guides the listener here.
To download any or all of these options simply click here. Enjoy.
Free Guitar Cabinet
Impulse Responses
Introducing
the
next
generation
in
guitar
cabinet
impulse
responses.
Try
the
new
Djammincabs
Maxxx
4x12.
All
of
these
cab
IR
files
are
based
on
old,
new,
and
boutique
4x12
cab
curves.
All
are
recorded
in
beautiful
24-bit
48K
mono
and
will
work
on
most
free
and
paid
digital
convolvers.
Hear
the
guitar
IR
breathe
fire
with
pure
attitude.
Don’t
be
suckered
in
with
high-dollar
sales
pitches,
there
ain’t
no
guitar
IR
downloads
better
than
these.
Choose
from
many
cab
sound
recording
styles:
cone,
edge,
angled,
arm
away,
inside
cab,
back
of
cab,
or
back
of
room.
Djammincabs
is
the
world
leader
in
guitar
cab
IR
invention
--
no
other
guitar
IR
company
can
imitate
these.
Djammincabs
Maxxx
4x12
makes
it
easier
for
you
to
design
your
own
personalized
sound
--
even
your
own
Metal
IR
pack.
If
you
can’t
find
a
cabinet
or
combination
you
like
here,
then
you
don’t
like
4x12
cabinets.
This
guitar
IR
download
also
includes
a
Tactical
Munitions
Manual
with
suggested
uses
and
detailed
cab
combinations.
This
is the best free guitar impulse download available anywhere.
Djammincabs Maxxx 4x12
“Murder Your Competition.”
I feel brave. I want to try them now. Here’s my email...
Djammincabs for Guitar
Free Guitar Impulse Responses
This is the original Djammincabs guitar cabinet impulse response
collection that started it all.
Click here to download
over 200 Free Guitar Cabinet Impulse Responses.
Djammincabs for Bass Guitar
Download Free Bass Impulse Responses
Click here to download
over 200 Free Bass Guitar Cabinet Impulse Responses.
Best Free Guitar Impulses.
The Top 11 Best Free
Guitar and Bass
Cabinet Impulse Responses for
2022
(in alphabetical order…)
Find, download, and test the best
free guitar cabinet impulse responses for 2022.
FREE BASS LOOPS SAMPLES
DOWNLOAD
ROYALTY FREE BASS LOOP SAMPLES
FREE BASS LOOPS
Over 200 samples are included in the
collection
Download the complete collection of 24-bit bass loops here.
NOTE: This download size is approximately 369 Megs.
Free Pendulate
Synthesizer Presets
Original Newfangled Audio Pendulate
synth patches/presets
Click here to download over 240
Free Pendulate Synth Presets (patches)
Synapse Audio
Dune Synthesizer
Download Over 200 Free
Synapse Audio
Dune 2 and Dune 3
Synthesizer Patches and Presets
Click here to download over 200 FREE Synapse Audio
Dune 2 or Dune 3 synthesizer patches or presets.
NOTE: This synth patch download is slightly over 1 Meg in size.
Free Reverb
Impulse
Responses
This is our
most popular
download page.
Choose from hundreds available in
48K 24 bit WAV format
including many new original reverbs.
CabSpace
Over 400 Guitar Isolation Booth Reverbs
Download over 400 Free Zystrix Original Reverb Impulse Responses,
and over 200 Free Zystrix Original BONUS Reverb Impulse
Responses.
Download all the Alesis MIDIVerb 4 reverb impulse responses.
Download all the Lexicon MPX-1 reverb impulse responses.
Download all the Alesis Wedge reverb impulse responses.
Download over 50 Reverb Relics from the past including oil cans.
Click here to download free reverb impulse responses.
Free Drum Samples
Only Available from
Zystrix
Free Gong Samples and Sounds
Free Snare Drum Samples and Sounds
Free Bass Drum Samples and Sounds
Free Oriental Cymbal Samples and Sounds
Free Oriental Bells Samples and Sounds
The Ultimate Original Drum Sounds List
Download over 2000 original slammin’ rock bass drums.
Download original Gongs, Cymbals, Broken Cymbals, and Bells.
Download Over 200 Free Original Bass Drum Sounds and Samples.
Download over 200 Original Free snare drum sounds.
Click here to download Drum Kit Sounds.
Dangerous Neighbors
The SW Michigan
Rock Band Power Trio.
Free Rockin’ Music Downloads
Download
tunes
from
the
80s
to
today.
Use
the
special
codes
on
the
Embalmed
for
Life
page
(see
the
DOWNLOAD
FREE
AUDIO
BOOKS
link
below)
and
get
free
downloads
for
the
complete
album and the free horror audio book
The Fluid - Embalmed for Life.
Click here to download various music from
the rock band Dangerous Neighbors.
Download Free Synth Samples for
Intros, Interludes, and Endings
Listen to example #01 by clicking here (MP3 Sample)
Download FREE professional quality stereo sample packs that
slowly evolve over time. All samples are in 48K 24 bit WAV
format and are about 20 seconds long or more. If you like
suspense, psycho, outer space, or terror then this collection is for
you. These range from paranoia to sci-fi, cinematic gore to
strange industrial horror, and creepy creatures to insane
laboratories.
Click here to download all the
synth Intros, Interludes, and Endings.
DOWNLOAD FREE
AUDIO BOOKS
The Fluid, Embalmed for Life
There are Free Audio Book codes for Audible downloads (must sign up).
There are also free sample downloads of the book reading.
There are free downloads of music samples.
There is a free “Look Inside” download of the paperback.
There is a free glossary of the largest list of mortuary slang in the world.
The Free Dangerous Neighbors Album The Fluid, Embalmed for Life
comes included as part of the audio book and parts are available here as a
free download.
The paperback book is available for
sale at Amazon dot com. I have no
control over these sales; because of the
Amazon agreement I cannot offer
complete paperback or complete audio
books here. And for some reason most
book sales go to Japan. Who would
have thunk it?
Click here for free audio books,
book reading samples, music samples, etc.
Take me back to the top of the page.
Zystrix Privacy Policy
THE
FINE
PRINT:
Zystrix
is
a
world
leader
in
personal
privacy
and
we
take
your
privacy
very
seriously.
We
do
not
store,
sell,
give
away,
or
barter
with
any
of
your
personal
or
private
information
including
your
email,
IP
address,
links
clicked,
location,
habits,
tastes,
online
activities
and
behaviors,
or
anything
else
considered
personal
or
private
information.
We
never
have.
Zystrix
is
not
and
has
never
been
a
participant
in
any
advertising
program
including
but
not
limited
to
the
Amazon
Services
LLC
Associates
Program,
Sweetwater,
Reverb,
or
any
other
affiliate
advertising
program
designed
to
provide
a
means
for
sites
to
earn
advertising
fees
from
readers
by
click-through
advertising
and
linking
to
the
aforementioned
or
any
other
companies.
Zystrix
does
not
allow
companies
like
Doubleclick,
Clickbank,
Zedo,
Linkbucks,
Hubspot
or
any
other
related
clandestine
personal
privacy
internet
problems
to
occupy
space
or
have
any
presence
on
or
in
the
Zystrix
website.
Zystrix
does
not
and
has
never
used
Google
Analytics,
therefore
this
site
is
not
required
to
have
those
annoying
cookie
agreement
popups.
Zystrix
has
no
links
associated
with
the
sale
or
offer
of
any
products,
and
we
do
not
allow
this.
Unlike
so
many
other
websites
similar
to
this
one,
this
Zystrix
privacy
policy
keeps
our
reviews
dead
honest,
cuts
out
any
unnecessary
middle
man,
and
keeps
this
website
free
from
cookies
and
the
influences
of
Google
and
the
many
other
unethical
purveyors
of
your
digital
exhaust
and
personal
information. Open source, private, and honest. It’s our mantra.
